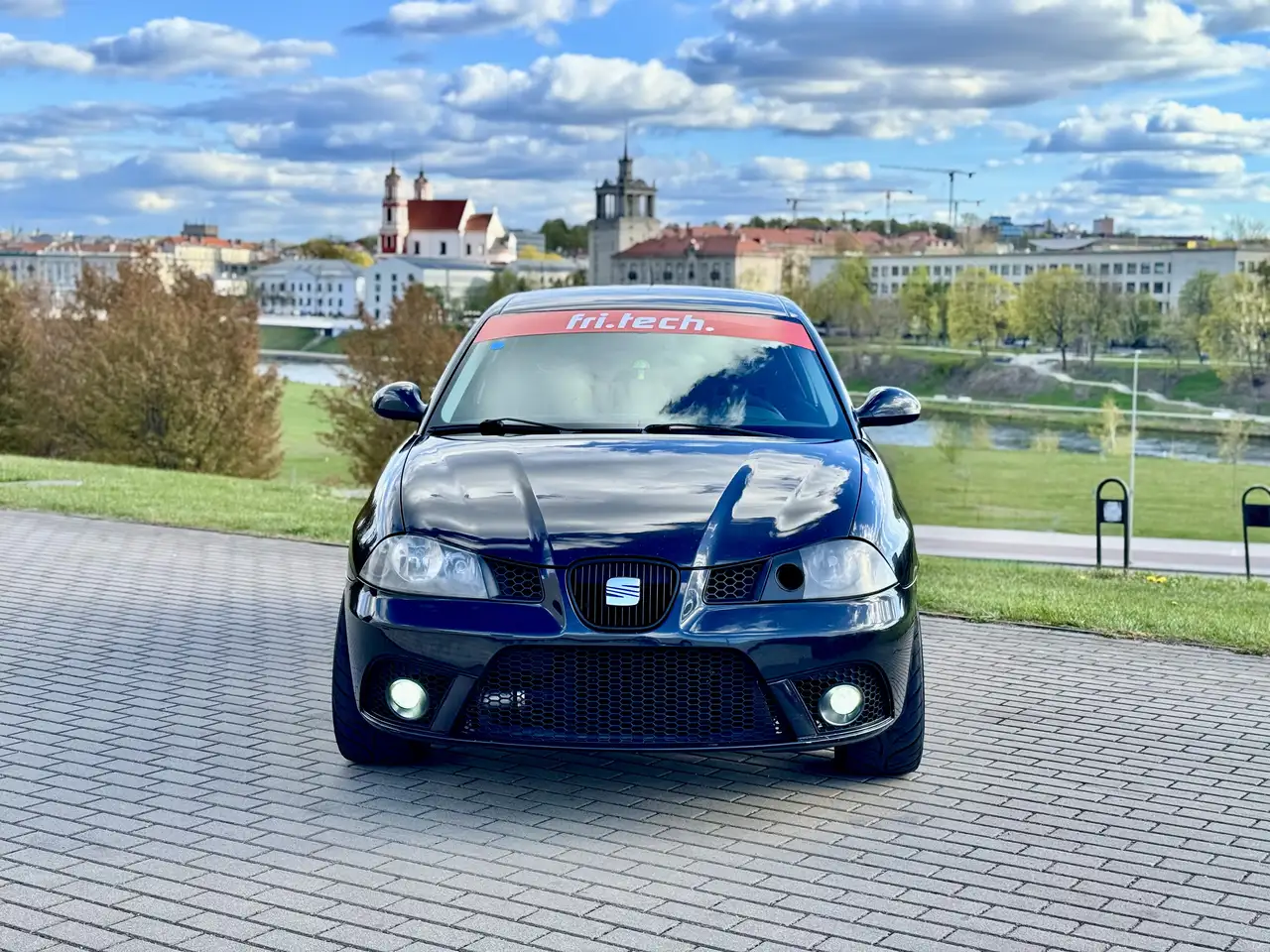

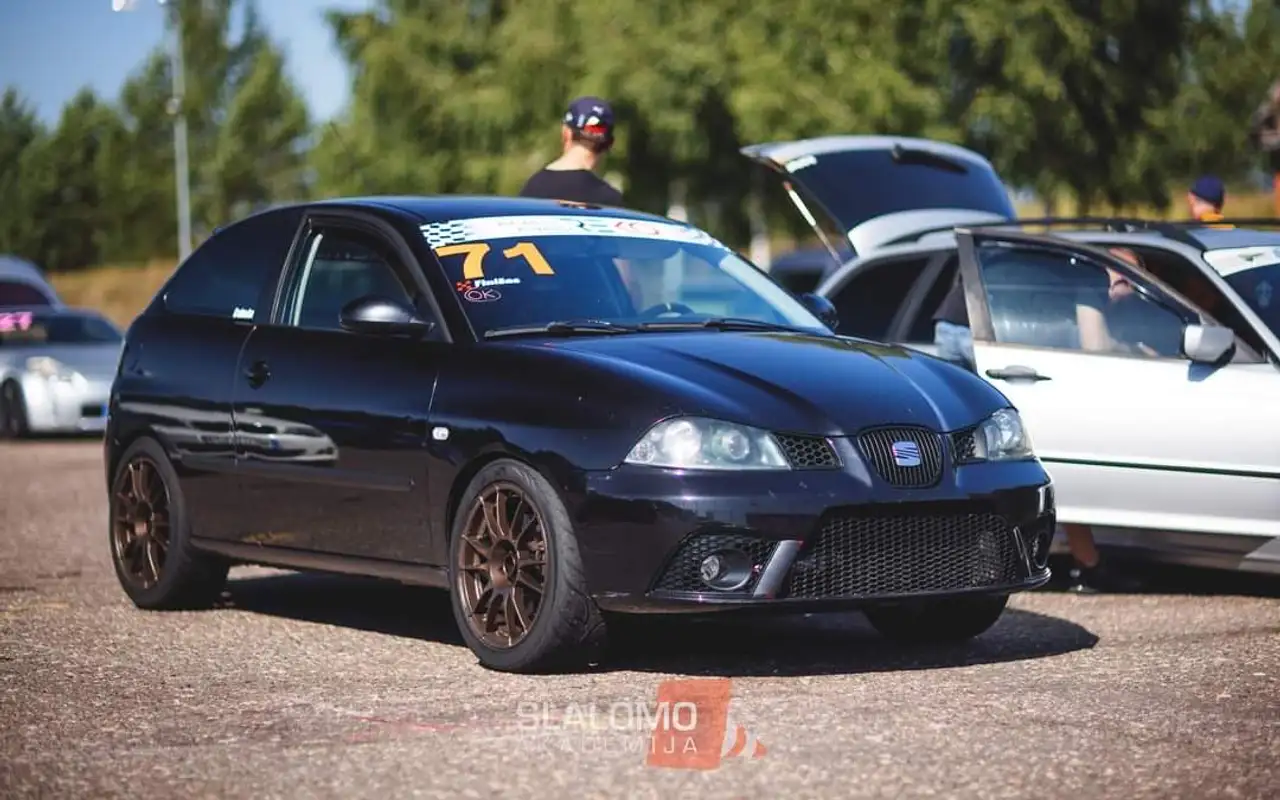

2003 SEAT Ibiza 1.9TDI 290hp Tracktool / Race Car

Seller’s Description

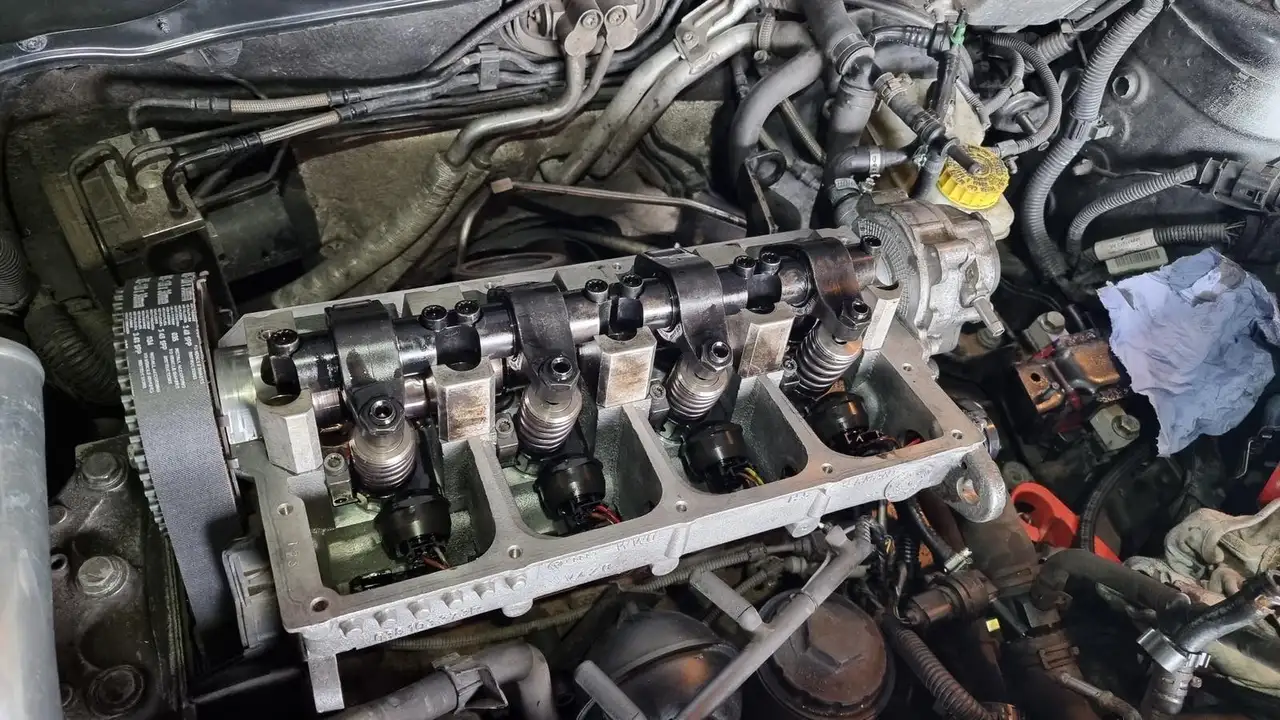

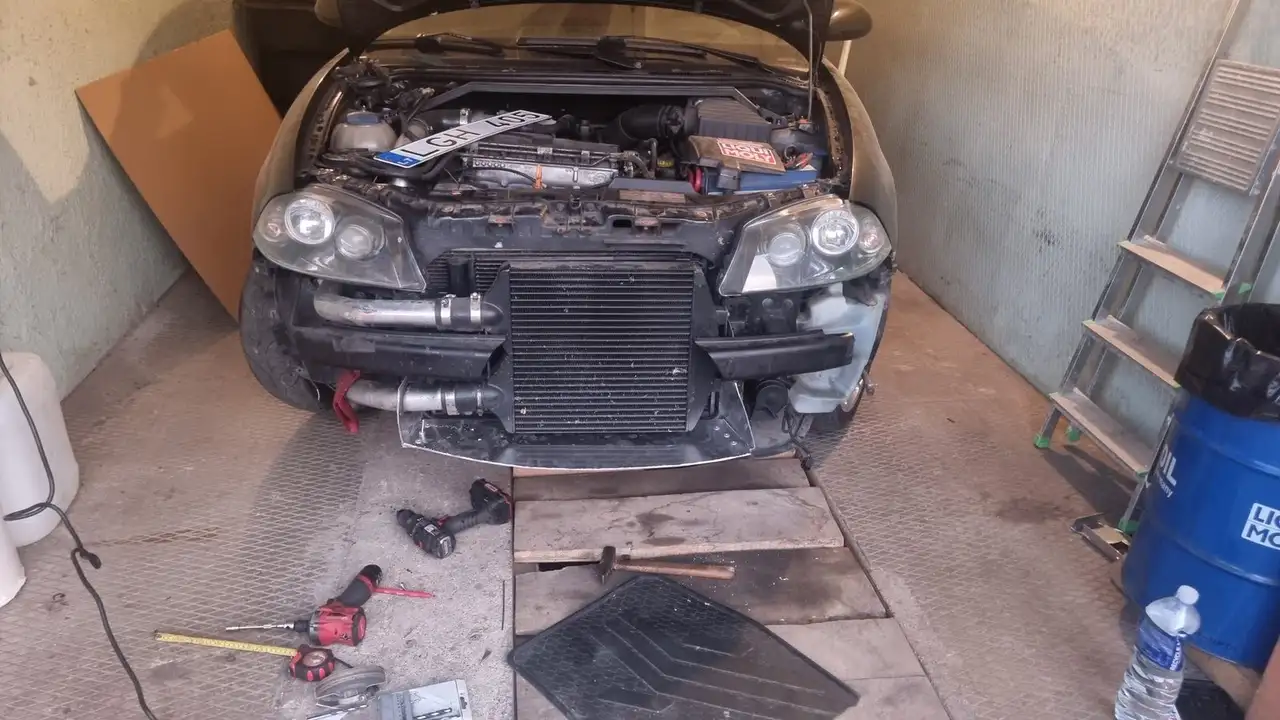

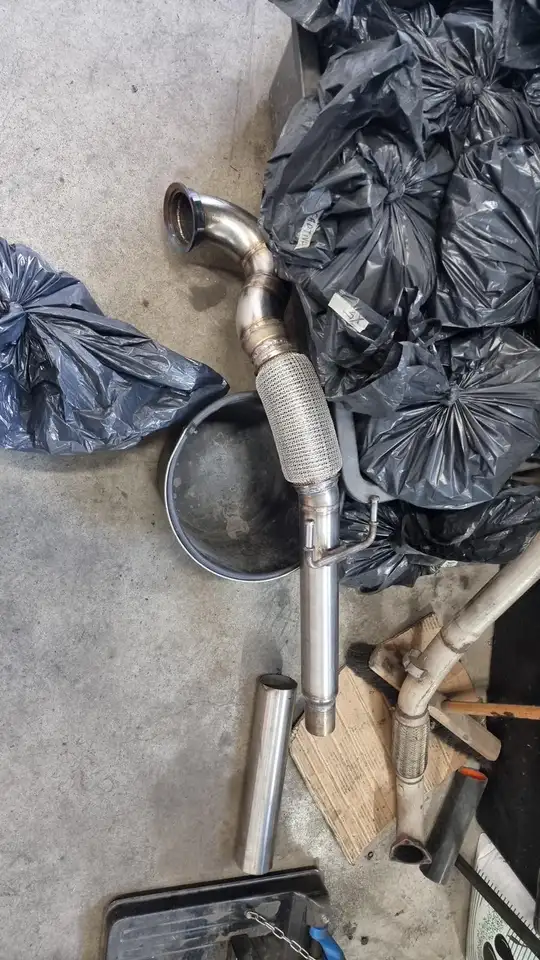

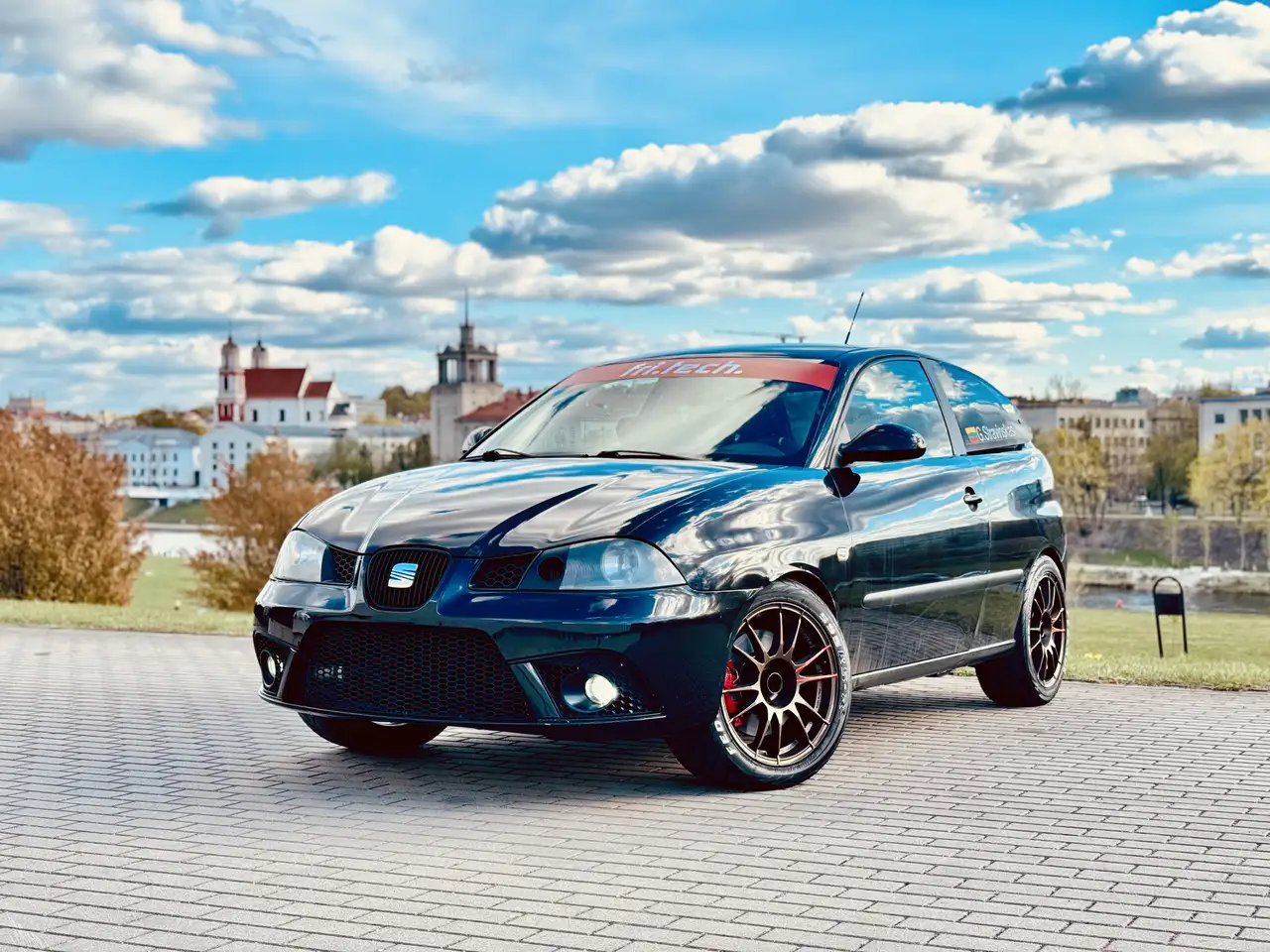

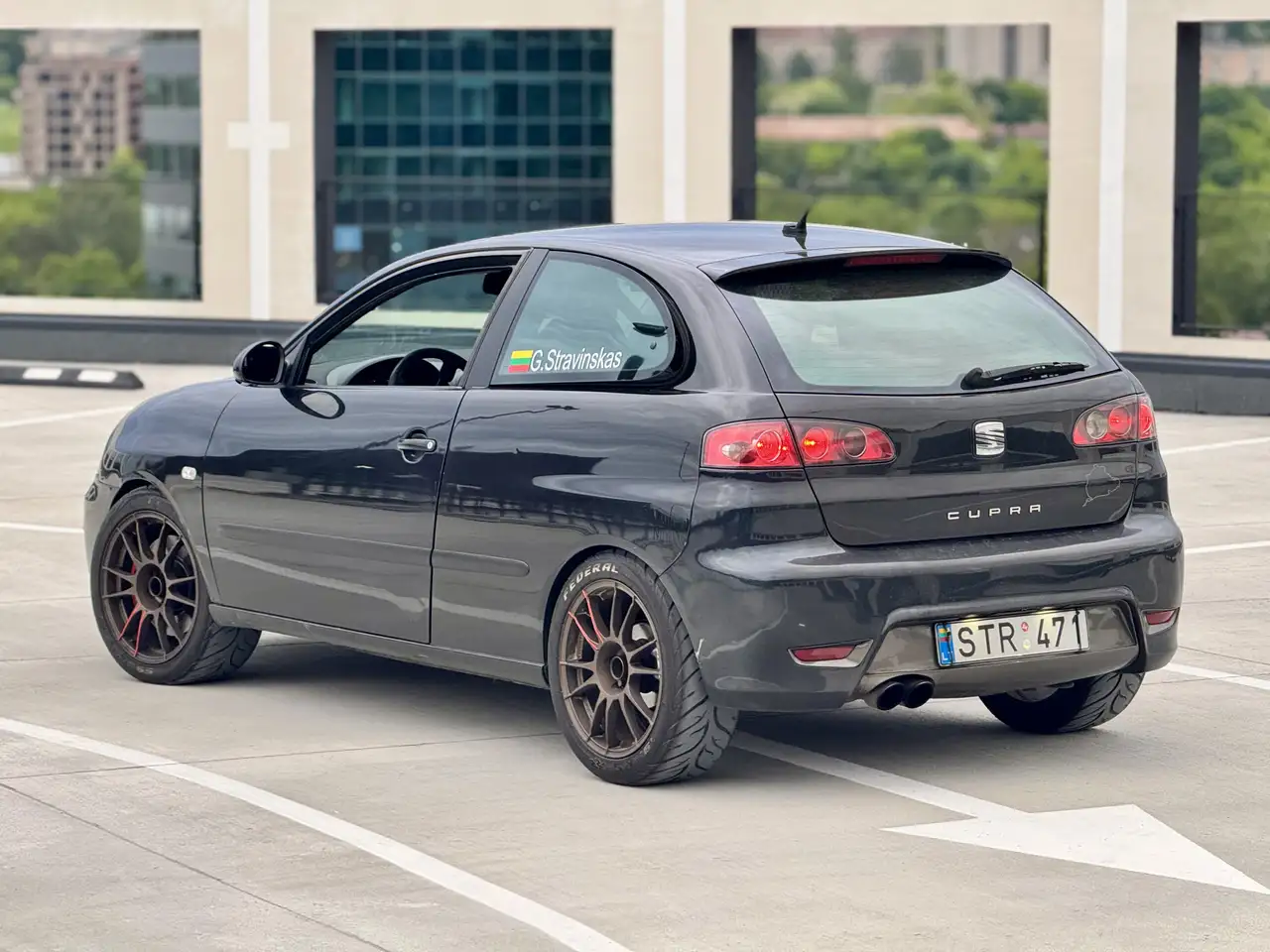

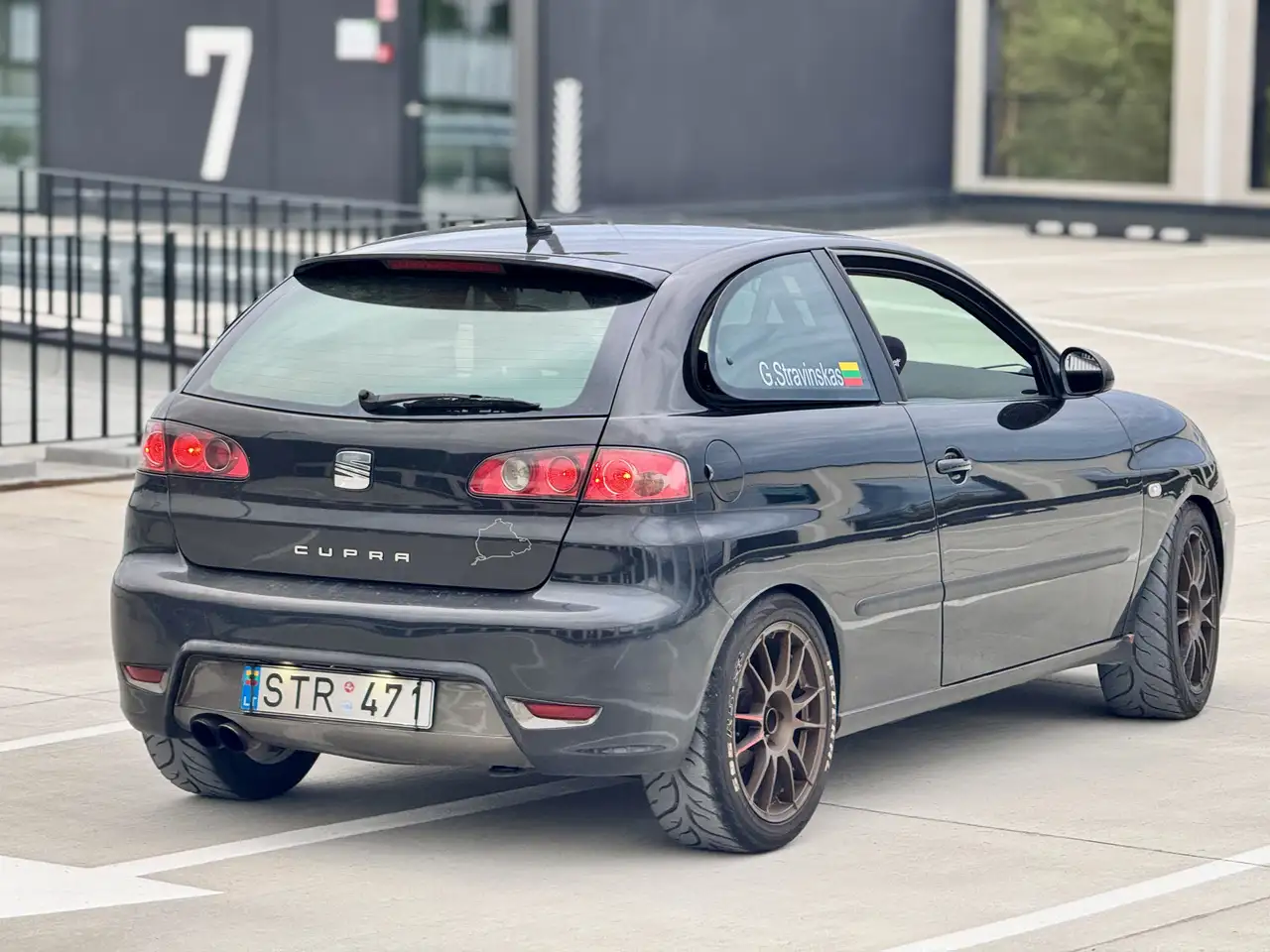

2003 SEAT Ibiza 6L 1.9 TDI ASZ 96 kW/130 hp, professionally built as a fast, reliable road-legal track car. Original PD130 ASZ base. Approx. 322,000 km. Lithuanian sport registration (SZ) with motorsport passport, inspection valid until 04/2027. 0-100km/h: 5.0sec. Max speed: ~245km/h GPS ENGINE: stock ASZ bottom end, fully rebuilt head with new gasket, PD150 head bolts, camshaft, valves, injector seats and Black Top lifters. Genuine PD160 injectors, checked/serviced. GTB2056VZK turbo fitted ~20,000 km ago, modified VNT control, 57 mm aluminium charge pipes, large FMIC, 76 mm stainless intake and downpipe/exhaust, K&N filter with direct cold-air feed. EGR/catalyst removed. ECU: custom maps included. Low boost track map ~225 hp / 2.0 bar for low EGT and reliability; medium boost 252.7 hp @ 4000 rpm, 548.6 Nm @ 2750 rpm / 2.5 bar (dyno graph included); high boost performance map ~290 hp / 3.0 bar, anti-lag/pops/flames available. Flat-shift available in all maps. COOLING: A/C and condenser removed for airflow, custom ducting to FMIC/radiator. Stable temperatures even during ~40 min track sessions. New timing belt/tensioners, water pump and thermostat. Fluids recently changed. No overheating or leaks. DRIVETRAIN: short-ratio 6-speed Cupra TDI gearbox, rebuilt with new seals. Sachs Performance clutch + reinforced pressure plate, good dual-mass flywheel, ~20,000 km. Polyurethane engine/gearbox mounts, new CV joints. Open diff. CHASSIS: BC Racing BR Series, ~5 kg/mm front / 2.7 rear, 30-way damping, front camber top mounts, ~-2.5° camber. Full polyurethane bushes front/rear, additional rear anti-roll bar. Steering rods/ends, ball joints and wheel bearings renewed. Setup developed through weighing, alignment and track testing. BRAKES: 312 mm front, Brembo HC discs, CL RC6 pads, rebuilt calipers, braided hoses, high-temp fluid. Rear Brembo discs/pads and new calipers. ~90-95% remaining. TRW front street pads included. ABS/ESP and handbrake work correctly. WHEELS: OZ Ultraleggera 17x8J all around, Federal 595 RS-RR 225/45 R17 with ~60-65%. SAFETY: rear stripped; front retains carpets, door cards and speakers. Sabelt Racer Duo driver seat on slider + Sabelt harness. Documented professional half cage, E355 seamless steel, FIA Appendix J 253 / LASF Cat. C spec. Fire extinguisher, relocated battery, master cut-off and tow strap. Race car documents. Approx. 1150 kg. Used for trackdays, Time Attack, slalom and Winter Games. Best Nemuno Žiedas lap ~1:20 on the 225 hp track map. Still daily-usable: ~12,000 road km since winter 2026; approx. 5.5 l/100 km relaxed / 7.5 mixed. Body has normal track-use marks and minor rust spots; sills/underside are solid. Technically very good, no known faults. Selling because I need a more family-friendly daily and use the Ibiza less on track. €6,990 negotiable. Trades considered for sporty/oldschool cars or Audi/Mercedes/BMW/VAG daily cars; Mercedes E500 ir Mercedes CLS500; cash adjustment only from buyer. The car is located in Lithuania, Vilnius, Europe, but I can bring it in almost ant location of Europe

Equipment & Options

30 items listed by the seller

• Electric windows
• Electric door mirrors
• Tinted windows
• Automatic climate control
• Navigation system
• Rain sensor
• Trip computer
• CD
• MP3
• Radio
• Alloy wheels
• Spoiler

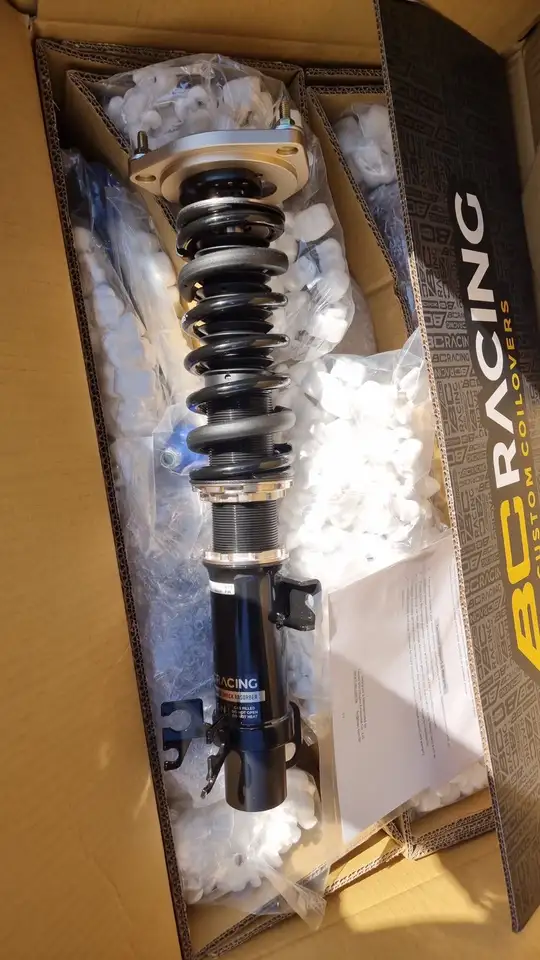

• Sports suspension
• Sports package

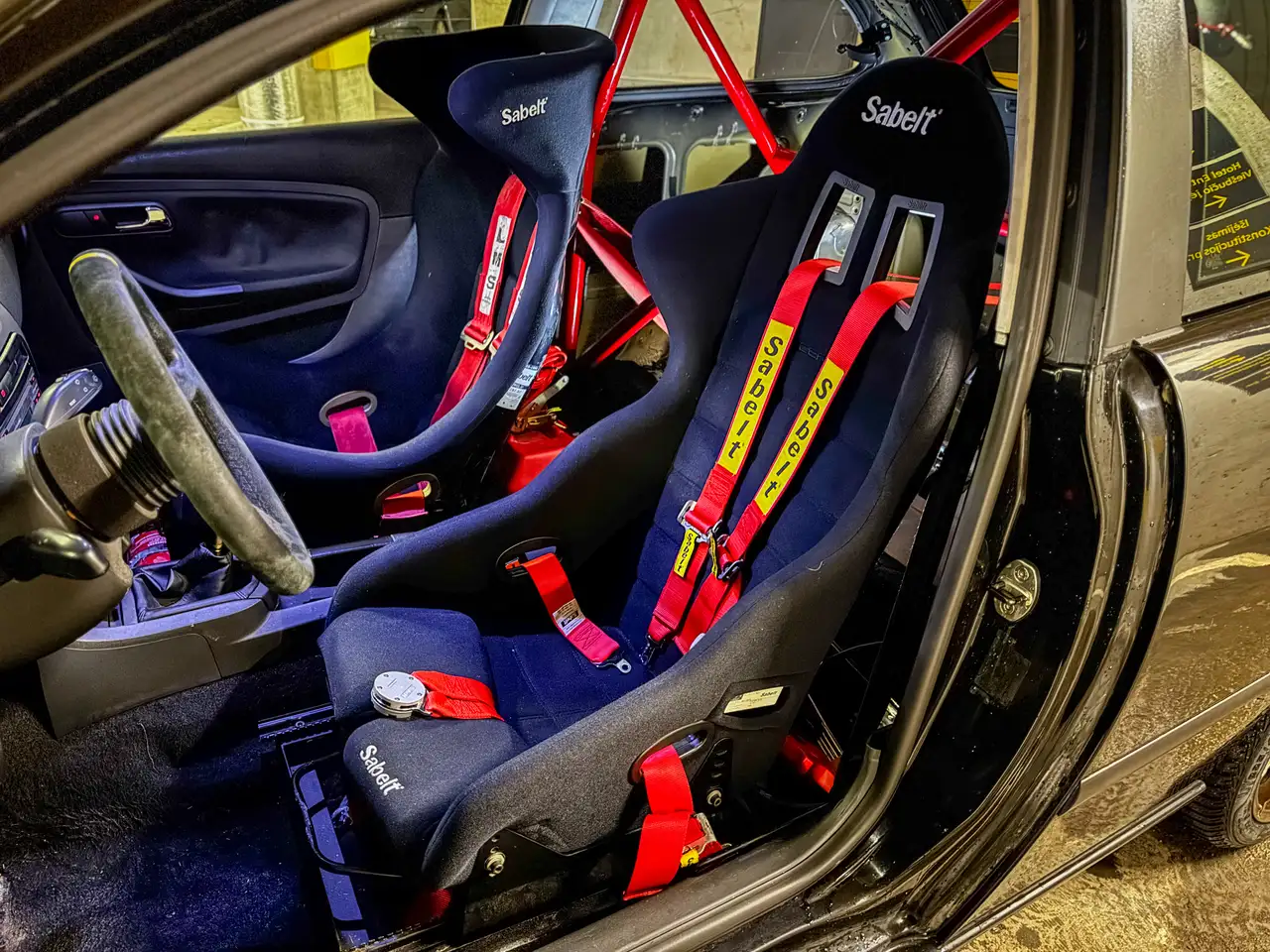

• Sports seats
• Steel wheels
• Tuning
• Anti-lock braking system
• Passenger airbag
• ESP
• Driver airbag
• Head airbags
• Fog lights
• Side airbags
• Power steering
• Traction control
• Immobiliser
• Xenon headlights
• Central locking
• Remote central locking
